AC 200-12 IC

The AC 200-12 IC is a Lithium-Iron-powered unit which can provide the operator with engine-off A/C. Not only does this product offer improved comfort, but it also reduces the need to run the vehicle's engine to power the A/C system. This translates to reduced operating costs for your fleet and protects the environment.

The AC 200-12 IC can charge using the 12V power from an alternator or shore power. It uses that power for a 24V DC compressor which provides 11,800 BTU of cooling capacity.

Cooling Capacity11,800 BTU
Total Energy3.84 kWh
Usable Energy3.04 kWh
Current Limit Export Primary285A at 100% Duty Cycle at 12V
Current Limit Export Auxiliary285A at 100% Duty Cycle at 24V
Primary Export Voltage12V-14.1V
Export Auxiliary Voltage Auxiliary24V-28.2V
Charge Voltage12V-14.2V
Primary Nominal Voltage12.8V
Auxiliary Nominal Voltage25.6V
Battery Chemistry*Lithium-Iron (LiFeMnPO4)
Number of 12V Battery Packs3
Internal Fuse Rating Battery Protection (Slow Blow)350A
Product Housing MaterialPowder-coated Galvanized Steel with Aluminum Lid

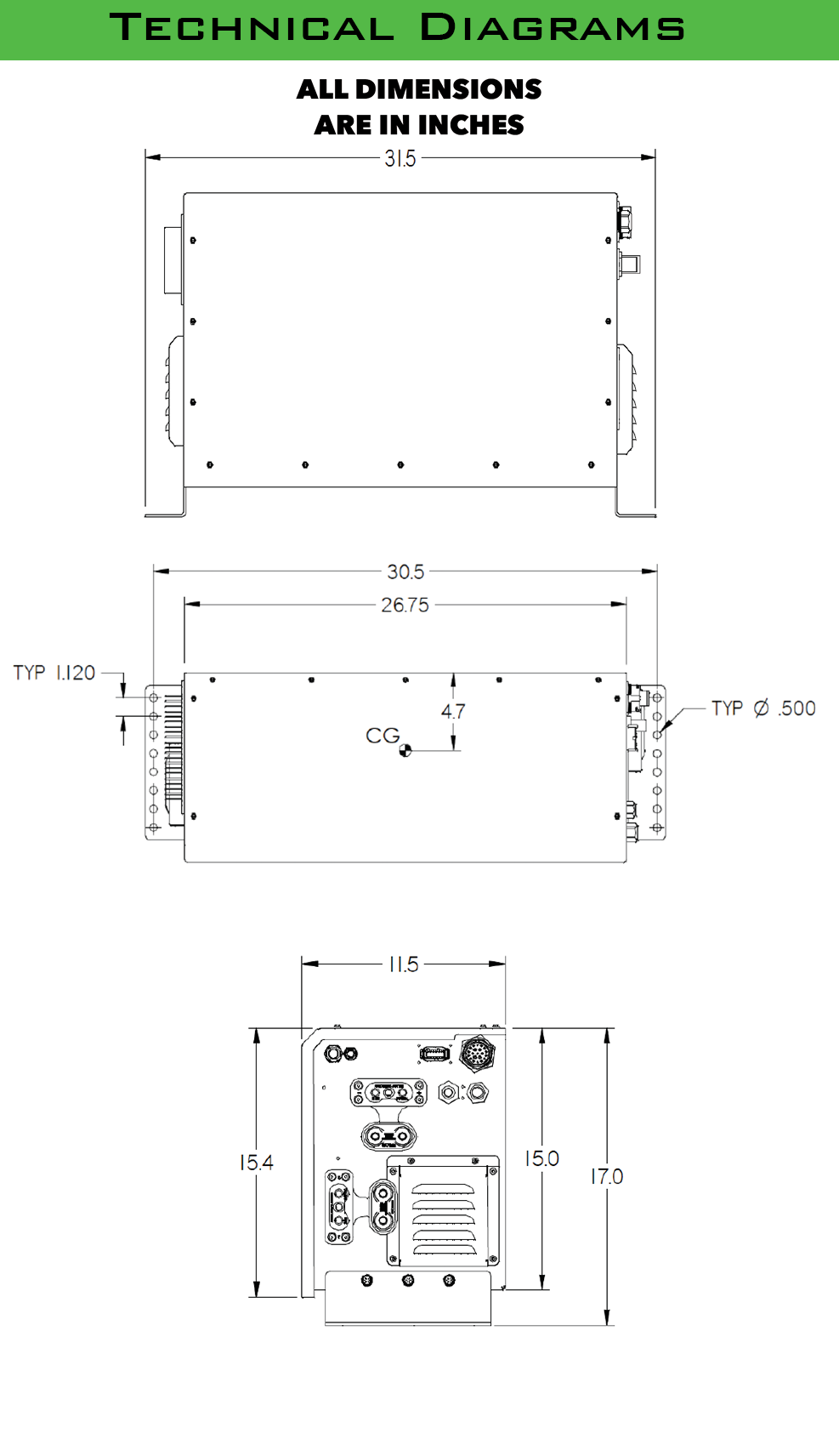

Dimensions (inches)31.5" (W) x 11.5" (D) x 17" (H)
Weight194.0 lbs / 88.0 kg
Charging Temperature Range32°F to 149°F / 0°C to 65°C
Discharge Temperature Range-4°F to 149°F / -20°C to 65°C

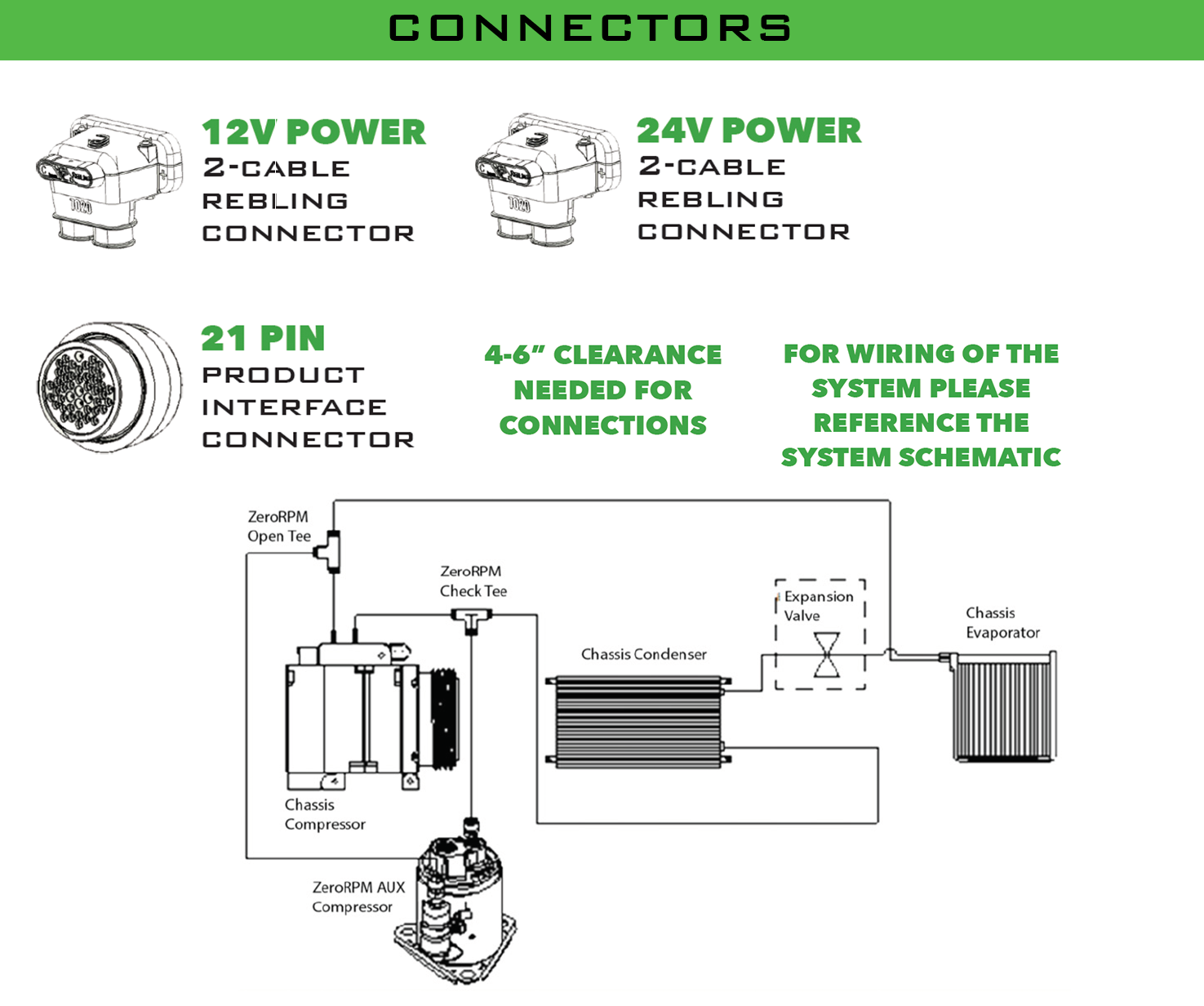

A/C Fitting Sizes#8 Pressure / #10 Suction
Compatible Freon TypesR-1234YF or R134a
"Lithium-Iron" is marketing term for ZeroRPM's LiFeMnPO4 packaged energy storage systems.
